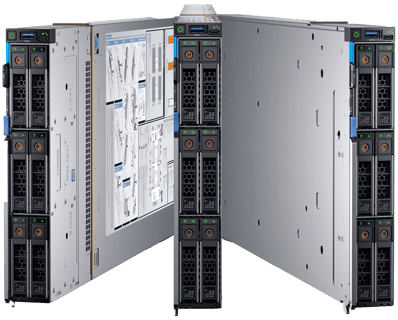

Dell PowerEdge MX740c Sled Server

Tech Specs

• Base:
  PowerEdge MX740c
• Processor:
  One or two 2nd Generation Intel™ Xeon™ Scalable Processors, up to 28 cores per processor
  Intel® C628 Chipset with optional Intel® QuickAssist Technology
• Memory:
  24 DIMM slots in total; supports DDR4 RDIMMs, LRDIMMs; up to 2933 MT/s speed,
  1.5TB maximum (RDIMM), 3TB maximum (LRDIMM)
• Persistent Memory:
  12 DIMM slots support NVDIMM-N; up to 2933 MT/s, 192GB maximum
  Supports up to 12 slots for Intel® OptaneTM DC persistent memory DCPMM (6.1TB) with a maximum total capacity of 7.68TB per server
• Availability:
  ECC
• Networking Options:
  MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25GbE, 32Gbps Fibre Channel, 12Gbps SAS
• Controllers:
  Internal controllers: S140 Software RAID, HBA330 Internal SAS HBA, PERC H730P Adapter, PERC H745P Adapter, HBA330 mini-mezzanine SAS HBA
  Internal boot options:: Choice of optional Boot Optimized Storage Solution (BOSS) (2 X M.2 SDDs) or Internal Dual SD Module (IDSDM)
• Drive Bays:
  Up to 6 x 2.5” SAS/SATA (HDD/SDD) or NVMe PCIe SSD
• Power Supplies:
  MX7000 chassis: Up to 6 3000W; PSU & grid redundancy
• Fans:
  MX7000 chassis: 5 rear and 4 front-accessible hot-swap
• Dimensions:
  620.35mm (24.2 inches) x 250.2mm (9.8 inches) x 42.14mm (1.65 inches)
• Front Ports:
  1 USB 3.0 port external port
• Supported Operating Systems:
  Citrix XenServer 7.1
  Red Hat Enterprise Linux 9
  Red Hat® Enterprise Linux 7
  Red Hat® Enterprise Linux 8
  SUSE Linux ES 12
  Ubuntu Server 16.04 LTS
  Ubuntu Server 20.04 LTS
  Ubuntu Server 22.04 LTS
  VMware ESXi 6.5
  VMware ESXi 6.7
  VMware ESXi 7.0
  VMware ESXi 8.0
  Windows Server 2012 R2
  Windows Server 2016
  Windows Server 2019 LTSC
  Windows Server 2022 LTSC
• Integrations:
  Microsoft® System Center
  VMware® vCenter™
  BMC Software (available from BMC)
  Ansible by Red Hat
• Connections:
  Nagios Core and Nagios XI
  Oracle Enterprise Manager
  Microfocus Operations Manager (OM) and Operations
  Manager i (OMi)
  IBM Tivoli Netcool/OMNIbus
• Video:
  Integrated VGA controller in iDRAC, VGA over LAN
• Internal Ports:
  1 x USB 3.0 internal port
• PCIe:
  2 PCIe 3.0 x 16 mezzanine slots (Fabric A and B)
  1 PCIe 3.0 x 16 mini-mezzanine slot (Fabric C)
• Embedded Management:
  MX7000 chassis:
  OpenManage Enterprise Modular Edition (OME-Modular); up to 2 redundant MX9002m management modules
  Unified control: single management point for server, storage and networking
  Intelligent automation: Operational template methodology and comprehensive RESTful API
  Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module

  On compute sled:
  As every other PowerEdge server, the Integrated Dell Remote Access Controller (iDRAC) 9 with Lifecycle Controller (LC)
  iDRAC Direct
  iDRAC RESTful API with Redfish
• OpenManage™ SW:
  MX7000 chassis:
  OpenManage Enterprise
  OpenManage Essentials
  OpenManage Mobile (OMM)
  OpenManage Power Center (OMPC)
• Security:
  TPM 1.2/2.0 (optional)
  Cryptographically signed firmware
  Silicon Root of Trust
  Secure Boot
  System Lockdown (requires OpenManage Enterprise)
  System Erase
