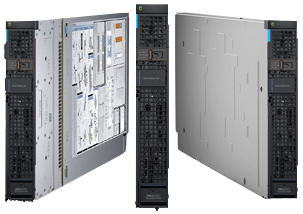

Dell PowerEdge MX5016s Storage Node
Call for price and availability
- 100% Dell Original Components
- 14 Day Money Back Guarantee
- Dell Engineer Approved
- Dell Server Generation:14th
- Server Model:MX5016s
- Server Type:Modular
-
RAID:HBA330 mini-mezz (MMZ)-(on the connected server),
PERC H745P MX-(on the connected server) - HDD:Up to 16 x 2.5” SAS (HDDs/SSDs) in one storage sled.
- Power Supply:Powered by Chassis
- HDD Capacity:Up to 16 x 2.5” SAS (HDD/SDD)
SKU: >MX5016S
Videos
Tech Specs
-
Base:
PowerEdge MX5016s
-
Enclosure:
PowerEdge MX Chassis
-
Form Factor:
Full height, single width, up to 7 MX5016s storage sleds per PowerEdge MX enclosure
-
Dimensions:
Height: 250.2mm
Width: 42.15mm
Depth: 600mm
Weight: 12kg maximum with all 16 HDDs installed -
Drive Bays:
Up to 16 x 2.5” SAS (HDDs/SSDs) in one storage sled. Up to 112 drives, 7 storage sleds within the PowerEdge MX chassis (plus 6 internal server storage drives)
-
Storage Controllers:
HBA330 mini-mezz (MMZ)- (on the connected server)
PERC H745P MX- (on the connected server) -
Power Supplies:
Power supplies and fans are provided by the PowerEdge MX chassis
-
I/O Ports:
MX5016s connects to servers via the MX5000s SAS switch
-
Systems Management:
PowerEdge MX uses OpenManage Enterprise - Modular Edition to manage all servers, storage, and networking for multiple chassis in a single web console or RESTful API interface.
Manage multiple PowerEdge MX groups, rack servers, and legacy modular systems with OpenManage Enterprise.
Once mapped to servers, the drives are configured, monitored, and updated via the iDRAC with Lifecycle Controller.
