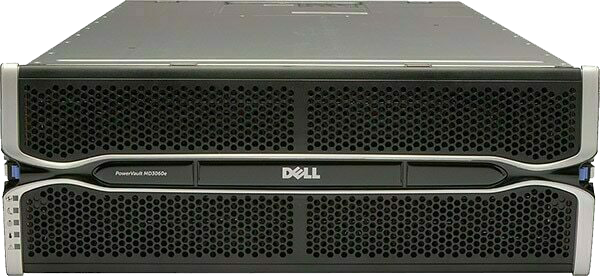

Dell PowerVault MD3060e
Call for price and availability
- 100% Dell Original Components
- 30-Day Money Back Guarantee
- Dell Engineer Approved
- Dell Server Generation:13th / 12th
- Server Model:MD3060E
- Server Type:Rack
- HDD:3.5" and/or 2.5" Hot Swap SAS, Near Line SAS, and SSD
- Power Supply:1755W
- HDD Capacity:up to 60
- Controller:Redundant Dual Enclosure Management Modules
SKU: >MD3060E
Videos
Tech Specs
-
Base:
PowerVault MD3060e
-
Drives:
60
-
Drive Types:
Mix and match 3.5” and 2.5” SAS, NL-SAS, SSD, SED
-
3.5” Drive Capacity:
NL-SAS 7.2K RPM: 500GB, 1TB3, 2TB3, 3TB3, 4TB3, 6TB, 8TB, 10TB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5” HDD carriers) -
2.5” Drive Capacity:
SAS 15K RPM: 146GB3, 300GB3, 600GB3
SAS 10K RPM: 146GB, 300GB3, 600GB3, 900GB3, 1.2TB3
NL-SAS 7.2K RPM: 500GB3, 1TB3, 2TB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
3.5” 10K and 15K HDDs aren't supported on dense models -
Expansion Capabilities:
Up to 4 dense enclosures behind a single server
-
Controllers:
Dual Enclosure Management Modules (EMMs)
-
Maximum HA host:
2
-
Form Factor:
4U rack enclosures
-
Management Software:
Server controller dependent
-
Server Support:
Dell PowerEdge R630, R730 and R730xd servers
-
OS Support:
Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.5, Ubuntu 12.04 LTS, and Debian 7.4
-
Dimensions:
177.8 mm (7.0”) x 482.6 mm (19.0”) x 825.5 mm (32.5”)
-
Max Weight:
105.20 kg (232.0 lb)
-
Power:
AC: 1755W
-
Heat Dissipation (Max):
5988 BTU/hr
-
Voltage:
220V AC, auto ranging
-
Frequency Range:
50/60Hz
-
Temperature:
Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
-
Relative Humidity:
Operating: 10% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
-
Altitude:
Operating: -30.5 m to 3000 m (-100 ft to 9,840 ft)
Note: For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.
