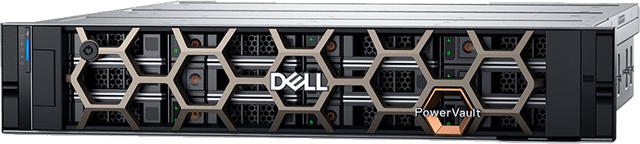

Dell PowerVault MD2412

Tech Specs

• Base:
  PowerVault MD2412 Storage Array
• Form Factor:
  2U
• Controllers:
  Dual 12Gbs/25Gbps SAS
• Internal Storage:
  12 x 3.5” (14G/15G/16G)
• Min/Max Drive Count:
  Up to 96 for HBA355e Up to 48 for H840 PERC Up to 96 for HBA355e
• PERC Support:
  Yes
• Max Enclosures:
  8 (with HBA355e) 4 (with H840 PERC) 8 (with HBA355e)
• Max Raw Capacity:
  1.92PB (20TB HDD)
• Storage Media:
  7.2K SAS/FIPS 3.5” drives - 20TB; 16TB; 12TB; 8TB; 4TB - FIPS: 8TB
• Host Interface:
  12Gb/24Gb SAS
• I/o & Ports:
  2x 4-lane 24Gbps SAS host connect per EMM (MD2412, MD2424) 4x 4-lane 24Gbps SAS host connect per EMM (MD2460) 1x USB-C debug ports per EMM
• Expansion Protocol:
  24Gb SAS4
• Supported:
  All-Flash, Hybrid Flash (10K HDD only (MD2424); 7.2K HDD only (MD2412, MD2460)
• Management:
  Enclosure Management Modules (EMM) 2 HA EMM per enclosure provide redundant enclosure management capability with iDRAC or SHMCLI
• PowerEdge Servers:
  14G/15G servers; R760, R660, R7625, R6625, R7615, R6615 servers
• Dimensions:
  H: 86.8 mm (3.4 inches) W: 444.0 mm (17.5 inches) D: 545 mm (21.5 inches)
• Weight:
  Max Config: 25.58 kg (56.39 lbs) Empty: 15.98 kg (35.23 lbs)
• Power/Wattage:
  800W
• Voltage:
  100-127/200-240 VAC; 240 VDC (China only)
• Frequency:
  50/60 Hz
• Operating temperature Operating temperature (ASHRAE A3):
  0ºC to 40ºC (32ºF to 104ºF) 5ºC to 40ºC (41ºF to 104ºF)
• Non-operating temperature:
  -40ºC to +65ºC (-40ºF to +149ºF)
• Operating humidity ranges (non-condensing):
  8% to 85% non-condensing
• Non-operating humidity (non- condensing) :
  10% to 95% non-condensing
• Operating max. temperature gradient:
  20ºC per hour
• Service and Warranty:
  Dell ProSupport Enterprise Suite and Dell ProDeploy Enterprise Suite. Optional ProSupport Plus is available offering pro-active and preventative.
