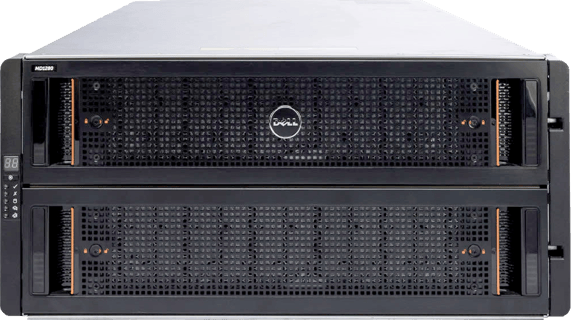

Dell PowerVault MD1280

Tech Specs

• Base:
  PowerVault MD1280
• Drives:
  Up to 84 hot-pluggable 3.5” drive bays
• Drive Performance & Capacities:
  3.5” NL-SAS 6Gb HDD (7.2K): 4TB, 6TB
  3.5” NL-SAS 4kn or 512e 6Gb HDD (7.2K): 6TB
  3.5” NL-SAS 512e 6Gb HDD (7.2K): 8TB
• Max Capacity Per Enclosure:
  Up to 672TB when using 84 x 8TB NL-SAS 3.5” HDDs
• Expansion Capabilities:
  LSI 9207-8e SAS HBA
• Enclosure Management Modules (EMM):
  2 EMM provide redundant EM capability
• Connectivity Per EMM:
  3 mini-SAS connectors for connection to host or exp
• Power:
  2800W
• Host Heat Dissipation:
  9554 BTU/hr
• Input Voltage Range:
  200-240 VAC
• Frequency Range:
  50/60Hz
• Amperage:
  8.6 - 4.3A (x2)
• Dimensions:
  H: 22.230 cm (8.8”)
  W: 48.260 cm (19”)
  D: 91.44 cm (36”)
• Weight:
  130.1 kg (287 lb) (maximum configuration)
  62.1 kg (137 lb) (empty)
• Service Management:
  3.5 mm Stereo Plug (for factory use only)
• Temperature:
  Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 20°C per hour
  Non-operating: -40° to 65°C (-40° to 149°F) at a maximum altitude of 12,000 m (39,370 ft)
• Relative Humidity:
  Operating: 10% to 80% (non-condensing) with 29°C (82.4°F) maximum dewpoint
  Non-operating: 5% to 95% (non-condensing) with 33°C (91°F) maximum dewpoint
• Altitude:
  Operating: -16 to 3048 m (-50 to 10,000 ft)
  Storage: -16 to 10,600 m (-50 to 35,000 ft)
• Inlet Type:
  0 to 3,048 m (0 to 10,000 ft)
  NOTE: Up to 35°C maximum temperature is reduced by 1°C/300 m (1°F/547 ft) above 950 m (3,117 ft)
