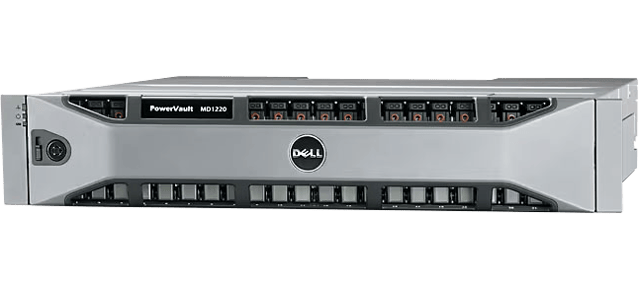

Dell PowerVault MD1220

Tech Specs

• Base:
  PowerVault MD1220
• Drives:
  Up to twenty-four (24) 2.5-inch hot-pluggable SAS Hard Disk Drives (HDDs) at 7200, 10K, 15K rpm and SAS Solid State Drive (SSDs)
• Drive Performance & Capacities:
  2.5” SAS HDDs
  10,000 RPM 6Gb/s SAS drives available in 300GB and 600GB
  2.5” SAS SSDs1
  3Gb/s SSD available in 149GB
• Max Capacity Per Enclosure:
  12TB using twenty-four (24) 500GB 7200 RPM 6Gb/s SAS HDDs
• Expansion Capabilities:
  PERC H800 enables expansion to 8 enclosures, 4 per port
• Host Connectivity:
  1 SAS (SFF 8088) IN connector for connection to the host
• Enclosure Management Modules (EMM):
  2 EMM provide redundant EM capability
• PERC H800:
  PCI-E 2.0 Host-RAID adapter with two external x4 SAS ports, standard 512MB cache and TBBU (transportable battery-backup unit)
• RAID Levels:
  0, 1, 5, 6, 10, 50 and 60
• Expansion Connectivity:
  1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure
• Service Management:
  1 6-pin UART mini-DIN connector (for factory use only)
• Power:
  600 W
• Host Heat Dissipation:
  188 W
• Input Voltage Range:
  100-240 VAC, auto-sensing
• Frequency Range:
  50/60Hz
• Amperage:
  8.6 A at 100 V, 4.3 A at 240 V
• Supported Continuous Consumption (Per Slot):
  Up to 1.2 A at +5V
  Up to 0.5 A at +12V
• Dimensions:
  H: 8.7cm (3.39 inches)
  W: 48.2cm (18.8 inches)
  D: 54.1cm (29.1 inches)
• Weight:
  23.31 kg (51 lb) (maximum configuration)
  8.61 kg (19 lb) (empty)
• Temperature:
  Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
  Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
• Relative Humidity:
  Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
  Storage: 5% to 95% (non-condensing)
• Altitude:
  Operating: -16 to 3048 m (-50 to 10,000 ft)
  Storage: -16 to 10,600 m (-50 to 35,000 ft)
