Dell PowerVault MD1200

Call for price and availability

100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

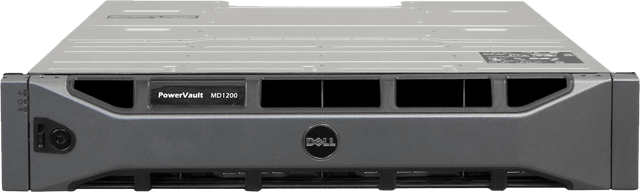

Image of Dell PowerVault MD1200
  • Dell Server Generation:13th / 12th / 11th
  • Server Model:MD1200
  • Server Type:Rack
  • HDD:3.5" Hot Swap SAS, Near Line SAS and SSD
  • Power Supply:Redundant 600W
  • HDD Capacity:12
  • Controller:Redundant Dual Port SAS 6Gbps
SKU: >MD1200

Tech Specs

  • Base:
    PowerVault MD1200
  • Drives:
    Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, and 15K rpm and SAS Solid State Drives (SSDs)
  • Drive Performance & Capacities:
    2.5” SAS HDDs in 3.5” carrier, 10,000 RPM 6Gb/s SAS drives available in 300GB and 600GB
    2.5” SAS SSDs in 3.5” carrier, 3Gb/s SSD available in 149GB
  • Max Capacity Per Enclosure:
    24TB using twelve (12) 2TB 7,200 RPM 6Gb/s SAS drives
  • Expansion Capabilities:
    PERC H800 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port)
  • Host Connectivity:
    1 SAS (SFF 8088) IN connector for connection to the host
  • Enclosure Management Modules (EMM):
    2 EMM provide redundant EM capability
  • PERC H800:
    PCI-E 2.0 Host-RAID adapter with two external x4 SAS ports, standard 512MB cache and TBBU (transportable battery-backup unit)
  • RAID Levels:
    PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Expansion Connectivity:
    1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure
  • Service Management:
    1 6-pin UART mini-DIN connector (for factory use only)
  • Power:
    600 W
  • Host Heat Dissipation:
    188 W
  • Input Voltage Range:
    100-240 VAC, auto-sensing
  • Frequency Range:
    50/60Hz
  • Amperage:
    8.6 A at 100 V, 4.3 A at 240 V
  • Supported Continuous Consumption (Per Slot):
    Up to 1.16 A at +5V
    Up to 1.6 A at +12V
  • Dimensions:
    H: 8.7cm (3.39 inches)
    W: 48.2cm (18.8 inches)
    D: 59.4cm (23.17 inches)
  • Weight:
    28.39 kg (62.6 lb) (maximum configuration)
    8.84 kg (19.5 lb) (empty)
  • Temperature:
    Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
    Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
  • Relative Humidity:
    Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
    Storage: 5% to 95% (non-condensing)
  • Altitude:
    Operating: -16 to 3048 m (-50 to 10,000 ft)
    Storage: -16 to 10,600 m (-50 to 35,000 ft)
