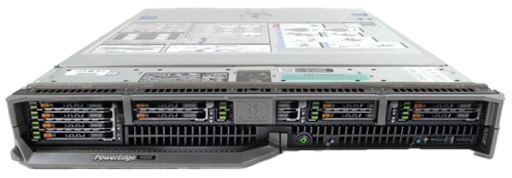

Dell PowerEdge M830 Blade Server

Tech Specs

• Base:
  PowerEdge M830 Server
• Form Factor:
  Full-height blade with up to 8 nodes in a 10U M1000e chassis; up to two nodes in a VRTX chassis
• Processor:
  Intel® Xeon® processor E5-4600 v3 or v4
• Processor Sockets:
  4
• Dimensions:
  H: 39.52 cm (15.56 in)
  W: 5.03 cm (1.98 in)
  D: 54.5 cm (21.45 in)
• Cache:
  2.5MB per core; core options: 6, 10, 12, 14, 16, 18, 22
• Chipset:
  Intel C610 series chipset
• Memory:
  Up to 3TB (48 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
• RAID Controllers:
  Internal controllers:
  PERC S130 (SW RAID)
  PERC H330
  PERC H730
  PERC H730P
• Primary Storage:
  Hot-plug hard drive options:PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD 12 x 1.8" SSD, 4 x 2.5" SATA HDD/SSD or SAS HDD/SSD, 2 x 2.5" PCIe SSD and 2 x 2.5" SATA HDD/SSD or SAS HDD SSD
• On-Board Network Adapters:
  2 x PCIe 3.0 (x8) Dell Select Network Adapters
  Select Network Adapter options:
  Broadcom 5720 1GB Quad Port KR Daughter Card
  Emulex OneConnect OCm14102B-N6-D 2-port 10GBE NIC
  Emulex OneConnect OCm14102B-U4-D 2-port 10GBE CNA
  Emulex OneConnect OCm14102-N6-D 2-port 10GBE KR NIC, Daughter Card
  Emulex OneConnect OCm14102-U4-D, Dual Port 10GBE, KR CNA Daughter Card
  Intel i350 Quad Port 1 Gigabit, KR Daughter Card
  Intel Quad Port 10-Gigabit, KR Daughter Card
  Intel x520-k Dual Port 10GB KR Daughter Card
  Intel X710 Dual Port, 10GB KR Daughter Card
  QLogic 57810-k Dual port 10GB KR CNA Daughter Card
  QLogic 57840S 10GB Quad Port KR CNA Daughter Card
• I/O Expansion Options:
  Broadcom 5719 Quad port 1GBE Mezzanine Card
  Emulex LPE1205-M 8GBps Dual Port Fibre I/O Mezz Card
  Emulex LPM16002 16GBps Dual Port Fibre I/O Mezz Card
  Emulex OCm14104-U3-D, Dual Port 10GBE, KR Mezz Converged Network Adapter
  Emulex OneConnect OCm14102B-N5-D 2-port 10GBE NIC
  Emulex OneConnect OCm14102B-U5-D 2-port 10GBE CNA
  Emulex OneConnect OCm14102-N5-D 2-port 10GBE NIC
  Intel i350 Quad Port 1GB Serdes Mezz Card
  Intel X520-x/k 10GB Dual Port I/O Mezz Card
  Mellanox Connect X3 FDR10 IB Mezz Card
  Mellanox ConnectX-3 Dual Port 10GB KR Mezz Card
  Mellanox ConnectX-3 Pro Dual Port 10 GBE KR Mezz Card
  Qlogic QME2572 8GBps Fibre Channel I/O Mezz Card
  QLogic QME2662 16GBps Fibre Channel I/O Mezz Card
• Power Supplies:
  Chassis level – M1000e 2700W Platinum and 3000W Titanium PSU options
• Video Card:
  Video Type:Integrated Matrox G200 with iDRAC8
  Video Memory: 16 MB shared with iDRAC8 app memory
• Systems Management:
  IPMI 2.0 compliant
  Dell OpenManage Essentials
  Dell OpenManage Mobile
  Dell OpenManage Power Center
• Remote Management:
  iDRAC8 with Lifecycle Controller
  iDRAC8 Express (default)
  iDRAC8 Enterprise (upgrade)
  8GB vFlash media (upgrade)
  16GB vFlash media (upgrade)
• Dell OpenManage Connections:
  HP Operations Manager
  IBM Tivoli® Netcool® & CA Network and Systems Mgmt
  Dell OpenManage Plug-in for Oracle® Database Manager
• Dell OpenManage Integrations:
  Integration Suite for Microsoft System Center
  OpenManage Integration for VMware® vCenter®
• Operating Systems:
  Microsoft Windows Server® 2008/2012 R2 (w/ Hyper-V®)
  Microsoft Windows Server 2012 (w/ Hyper-V®)
  Microsoft Windows Server 2008/2012 Datacenter (w/ Hyper-V®)
  Microsoft Windows Server 2008 R2 SP1 (w/ Hyper-V®)
  Microsoft Windows Server 2008 R2 SP2 x64/x86 (w/ Hyper-V®)
  Novell® SUSE® Linux Enterprise Server
  Red Hat® Enterprise Linux

  Optional Hypervisors:
  Citrix® XenServer®
  VMware vSphere® ESXi™
