Dell PowerEdge M640 Blade Server

  • From: $568
100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

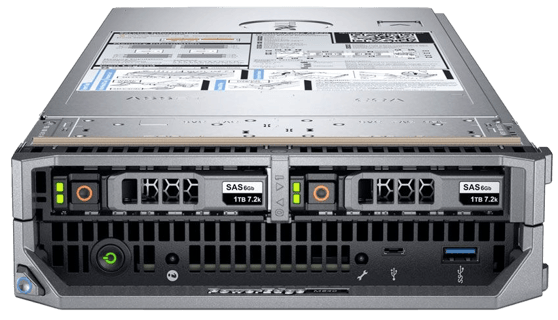

Image of Dell PowerEdge M640 Blade Server
  • Dell Server Generation:14th
  • Server Model:M640
  • Server Type:Modular
  • CPU:Up to 2 x Intel Xeon SP Multi Core
  • Memory:16 DIMM Slots (Max 2TB)
  • RAID:PERC H330, PERC H730P 2GB NV
  • HDD:3.5" and 2.5" Hot Swap SAS, SATA and Near Line SAS, NVMe SSD
  • Power Supply:Powered by Chassis
SKU: >M640

Videos

Resources

Blogs

Tech Specs

  • Base:
    PowerEdge M640
  • Processor:
    Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
  • Memory:
    16 DDR4 DIMMs in total; Supports RDIMM /LRDIMM speeds up to 2933MT/s, 2TB Max
    ECC Registered DDR4
  • Internal Controllers:
    :
    Software RAID S140, PERC9 H330, H730P
    Internal Dual SD Module
    M.2 available for Boot Optimized Storage System (BOSS)
  • Drive Bays:
    1-2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD, max 12.8 TB
  • Dimensions:
    Handle push in:
    D: 544.32 mm
    W: 50.35 mm
    H: 197.9 mm

    Handle pull out:
    D: 564.87 mm
    W :50.35 mm
    H: 197.9 mm
  • Embedded/At-Server:
    iDRAC9
    iDRAC9 with Lifecycle Controller
    iDRAC Direct
    iDRAC REST API with Redfish
    Chassis Management Controller
  • Consoles & Mobile:
    OpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center
  • Integrations:
    Microsoft® System Center, VMware® vCenter™, BMC Software (available from BMC)
  • Connections:
    Nagios Core and Nagios XI, Oracle Enterprise Manager, HPE Operations Manager i
  • Tools:
    Dell EMC Repository Manager
    Dell EMC System Update
    Dell EMC Server Update Utility
    Dell EMC Update Catalogs
    iDRAC Service Module
    OpenManage Server Administrator
    OpenManage Storage Services
  • Power Supplies:
    The M640 leverages M1000e or VRTX power
    M1000e or VRTX Hot plug fans with full redundancy
  • Security:
    TPM 1.2/2.0 optional
    Cryptographically signed firmware
    Hardware Root of Trust
    Secure Boot
    System Lockdown
    System Erase
  • I/O & Ports:
    Network daughter card options
    2 x 10GE + 2 x 1GE, 4 x 10GE
    Front ports: Power button, System ID / Status LED, 1 USB 2.0 MicroAB port with iDRAC management function, 1 USB 3.0 port
    Rear ports: see enclosure specifications
    Video card: VGA controller integrated with iDRAC
    PCIe: See enclosure specifications
  • Operating Systems:
    Canonical® Ubuntu® Server LTS
    Citrix® XenServer®
    Microsoft Windows Server® with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware ESXi
