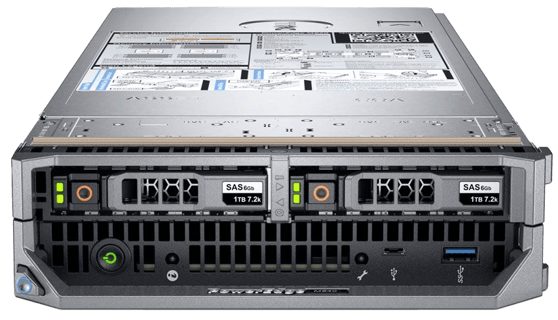

Dell PowerEdge M630 Blade Server

Tech Specs

• Base:
  PowerEdge M630
• Form Factor:
  Half-height blade with up to 16 nodes in a 10U M1000e chassis; up to four nodes in a VRTX chassis
• Processor:
  Intel® Xeon® processor E5-2600 v3 product family
• Processor Sockets:
  2
• Dimensions:
  H: 197.9 cm
  W: 50.35 cm
  D: 544.32 cm
• Memory:
  1Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s
• Cache:
  :
  2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18
• Chipset:
  :
  Intel C610 series chipset
• Hot-Plug HDD Options:
  PowerEdge Express Flash NVMe PCIe SSD,
  SATA HDD/SSD or SAS HDD/SSD
  4 x 1.8” SSD. 2 x 2.5” PCIe SSDs
• I/O Mezzanine Cards:
  2 x PCIe 3.0 (x8) mezzanine cards
• Optional Adapters:
  iDRAC9
  Broadcom® 5719 quad-port 1Gb NIC
  Broadcom 5720 dual-port 1Gb NIC
  Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
  Broadcom 57810 dual-port 10Gb Base-T
  Intel Ethernet I350 dual-port 1Gb
  Intel Ethernet I350 quad-port 1Gb
  Intel Ethernet X540 dual-port 10GBASE-T
  Mellanox® ConnectX®-3 dual-port 10Gb
  Direct Attach/SFP+ server network adapter
  Mellanox ConnectX-3 dual-port 40Gb
  Direct Attach/ QSFP server network adapter
  Emulex® LPE 12000, single-port 8Gb Fibre HBA
  Emulex LPE 12002, dual-port 8Gb Fibre HBA
  Emulex LPe16000B, single-port 16Gb Fibre HBA
  Emulex LPe16002B, dual-port 16Gb Fibre HBA
  Emulex OneConnect OCe14102-U1-D 2-port 10GbE CNA
  QLogic® 2560, single-port 8Gb Optical Fibre HBA
  QLogic 2562, dual-port 8Gb Optical Fibre HBA
  Qlogic 2660, single-port 16GB, Fibre HBA, FH
  Qlogic 2662, dual-port 16GB, Fibre HBA, FH
• Power Supplies:
  Chassis level – PowerEdge M1000e 2700W Platinum and 3000W Titanium PSU options
• Video Card:
  Video type Matrox® G200 (integrated with iDRAC8)
  Video memory: 16MB shared with iDRAC8 app memory
• Internal RAID:
  PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
• Systems Management:
  IPMI 2.0 compliant
  Dell OpenManage Essentials
  Dell OpenManage Mobile
  Dell OpenManage Power Center
• Remote Management:
  iDRAC8 with Lifecycle Controller
  iDRAC8 Express (default)
  iDRAC8 Enterprise (upgrade)
  8GB vFlash media (upgrade)
  16GB vFlash media (upgrade)
• Integrations:
  OpenManage Integration for Microsoft® System Center
  OpenManage Integration for VMware® vCenter™
• Connections:
  HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
  OpenManage Plug-in for Oracle® Database Manager
• Operating Systems:
  Microsoft® Windows Server® 2008 R2
  Microsoft Windows Server 2012
  Microsoft Windows Server 2012 R2
  Microsoft Windows® HPC Server 2008
  Novell® SUSE® Linux Enterprise Server
  Red Hat® Enterprise Linux
  VMware® ESX®
