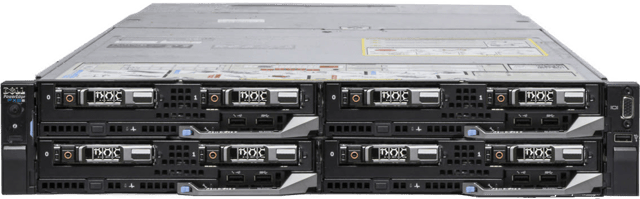

Dell PowerEdge FC640 Sled Server

Tech Specs

• Base:
  PowerEdge FC640
• Processor:
  Up to two Intel® 2nd generation Xeon® Scalable processors, up to 28 cores per processor
• Memory:
  16 DDR4 DIMM slots, supports RDIMM / LRDIMM / AEP, up to 2933MT/s speeds, 2TB max mem
  ECC Registered DDR4
• Internal Controllers:
  Software RAID S140, PERC H330, H730P, HBA330 Boot Optmized Storage system, Internal Dual SD Module
• Drive Bays:
  Front: Up to 2 x 2.5” SAS/SATA (HDD/SDD), NVMe SSD on a Universal Backplane, max 12.8TB (PCIe SSD)
• Power Supplies:
  PowerEdge FX2 enclosure: Platinum Rated - 1600W, 2000W, 2400W
• Fans:
  Hot plug fans with full redundancy
• Embedded/At-Server:
  iDRAC9
  iDRAC Direct
  iDRAC REST API with Redfish
  Chassis Management Controller (CMC)
• Consoles & Mobile:
  OpenManage Enterprise
  OpenManage Essentials
  OpenManage Mobile
  OpenManage Power Center
• Integrations:
  Microsoft® System Center, VMware® vCenter™, BMC Software (available from BMC)
• Connections:
  Nagios Core and Nagios XI, MicroFocus
• Tools:
  Dell EMC Repository Manager
  Dell EMC Update Package
  Dell EMC System Update
  Dell EMC Server Update Utility
  iDRAC Service Module
  OpenManage Server Administrator
  OpenManage Storage Services
• Dimensions:
  40.3mm x 211 mm x 535.8 mm
• Security:
  TPM 1.2/2.0 optional
  Cryptographically signed firmware
  Silicon Root of Trust
  Secure Boot
  System Lockdown
  System Erase
• I/O & Ports:
  Network daughter card options
  2 x 10GE + 2 x 1GE, 4 x 10GE
  Video card: VGA controller integrated with iDRAC
  PCIe: See enclosure specifications
• Operating Systems:
  Canonical® Ubuntu® Server LTS
  Citrix® XenServer®
  Microsoft Windows Server® with Hyper-V
  Oracle® Linux
  Red Hat® Enterprise Linux
  SUSE® Linux Enterprise Server
  VMware vSphere®
