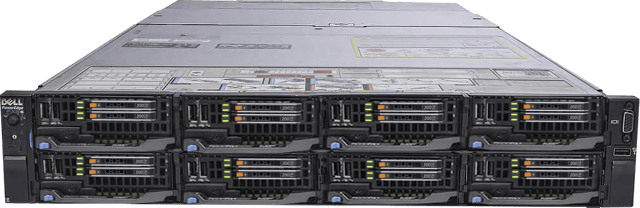

Dell PowerEdge FC430 Sled Server

Tech Specs

• Base:
  PowerEdge FC430
• Dimensions:
  H: 4.25 cm (1.67 in)
  W: 10.27 cm (4.04 in)
  D: 45 cm (18.89 in)
• Form Factor:
  Quarter-width – supports up to 8 sleds per PowerEdge FX2 enclosure
• Processor:
  Intel® Xeon® processor E5-2600 v4 product family
  Processor sockets: 2
  Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 18
  Chipset: Intel C610 series
• Power Supplies:
  Chassis level – PowerEdge FX2 hot-plug PSU: 2000W, 1600W AC in 1+1 redundant or 2+0 non-redundant configurations
• Memory:
  Up to 256GB (8 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2400MT/s
• I/O Mezzanine Cards:
  Access to 1 x PCIe 3.0 (x8) expansion slots
• Internal Controllers:
  PERC S130 (SW RAID)
• Primary Storage:
  Hot-plug hard drive options:
  PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD
  Up to 2 x 1.8" uSATA SSDs
• Optional Adapters:
  Optional NICs and HBAs
• Video Card:
  Video type Matrox® G200 (integrated with iDRAC8)
  Video memory: 16MB shared with iDRAC8 application memory
• Systems Management:
  FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console

  OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products

  CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs

  Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management
• Operating Systems:
  Microsoft® Windows Server® 2008 R2
  Microsoft Windows Server 2012
  Microsoft Windows Server 2012 R2
  Novell® SUSE® Linux Enterprise Server
  Red Hat® Enterprise Linux
  VMware® ESX®
