Dell Networking E3248PXE-ON Switch

  • From: $7,499
100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

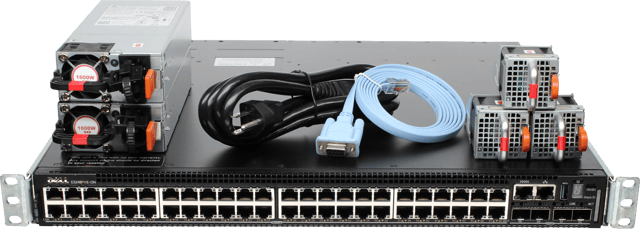

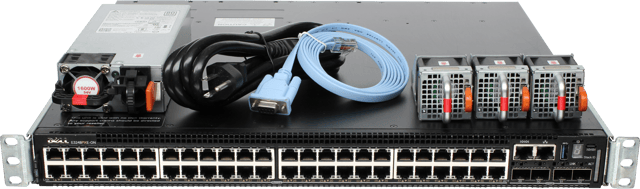

Image of Dell Networking E3248PXE-ON Switch
  • Primary Port Quantity:48 ports
  • Uplink Port Quantity:2 ports
  • Secondary Uplink Port Quantity:4 ports
  • Secondary Uplink Ports:25GbE SFP28
  • Hot-swappable AC Power Supply:1600W
  • Default Operation System:SONiC
  • Power Supply:2 x hot-swappable 1600W AC PSUs.
  • Airflow:Standard Airflow
  • Ports:BASET1TO10
  • Uplink Ports:QSFP28
  • PoE:YES
  • Transceivers:Not Included
SKU: >E3248PXE-ON

Resources

Tech Specs

  • Physical:
    2 integrated rear 100GbE QSFP28 ports Out-of-band management port (10/100/1000BASE-T)
    USB (Type A) port for configuration via USB flash drive
    MicroUSB (Type B) console port (MicroUSB to USB connector cable included)
    RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included) Auto-negotiation for speed and flow control
    Auto-MDI/MDIX, port mirroring Flow-based port mirroring Broadcast storm control
    Energy-Efficient Ethernet per port settings** Redundant variable speed fans
    Air flow: I/O to power supply
    Power supply: Integrated 1600W
    Dual firmware images on-board
    Switching engine model: Store and forward
  • Chassis:
    Size (1RU, H x W x D):
    1.71 in x 17.09 in x 15.75 in (power supply/ fan tray handle adds add’l 1.18 in)
    Approximate weight (Switch with 1 PSU installed):
    17.6lbs/7.98kg,
    2-post rack mounting kit
  • Environmental:
    Power supply efficiency: 87% or better in all operating modes
    Max. thermal output (BTU/hr): 18487
    Power consumption max (watts): 4869
    Operating temperature: 32° to 113°F (0° to 45°C)
    Operating relative humidity: 95%
    Storage temperature: –40° to 158°F (–40° to 70°C)
    Storage relative humidity: 95%
  • Performance:
    CPU: 4-core
    CPU memory: 16GB
    SSD: 32GB
    Switch fabric capacity (full-duplex): 1560Gbps
    Forwarding rate: 2167Mpps
    Line-rate Layer 2 switching: All (non-blocking)
    Line-rate Layer 3 routing: All (non-blocking)
  • Regulatory compliance :
    TAA-compliant, Trade Agreements Act (19 U.S.C. & 2501-2581)
  • Safety and emissions:
    Australia/New Zealand: ACMA RCA Class A Canada: ICES Class A; cUL
    China: CCC Class A; NAL Europe: CE Class A Japan: VCCI Class A
    USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
    Eurasia Customs Union: EAC Germany: GS mark
    Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China. For more country-specific regulatory information, and approvals, please see your Dell Technologies representative.
  • RoHS:
    Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell Technologies representative.
    EU WEEE
    EU Battery Directive REACH
