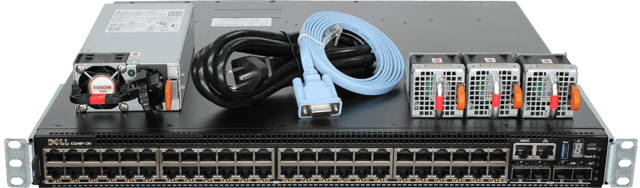

Dell Networking E3248P-ON Switch
- From: $4,499
- 100% Dell Original Components
- 30-Day Money-Back Guarantee
- Dell Certified Technicians & Engineers
- Ports:10/100/1000 Base-T
- Primary Port Quantity:48 ports
- Uplink Ports:100GbE QSFP28
- Uplink Port Quantity:2 ports
- Secondary Uplink Port Quantity:4 ports
- Secondary Uplink Ports:1/10GbE SFP+
- Hot-swappable AC Power Supply:1050W
- Airflow:Standard Airflow
- Default Operation System:Other
- PoE:YES
- Ports:BASET1TO10
- Uplink Ports:QSFP28
- PoE:YES
- Transceivers:Not Included
SKU: >E3248P-ON
Resources
Tech Specs
-
Physical:
2 integrated rear 100GbE QSFP28 ports Out-of-band management port (10/100/1000BASE-T)
USB (Type A) port for configuration via USB flash drive
MicroUSB (Type B) console port (MicroUSB to USB connector cable included)
RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included) Auto-negotiation for speed and flow control
Auto-MDI/MDIX, port mirroring Flow-based port mirroring Broadcast storm control
Energy-Efficient Ethernet per port settings** Redundant variable speed fans
Air flow: I/O to power supply
Power supply: Integrated 1050W
Dual firmware images on-board
Switching engine model: Store and forward -
Chassis:
Size (1RU, H x W x D):
1.71 in x 17.09 in x 15.75 in (power supply/ fan tray handle adds add’l 1.18 in)
Approximate weight (Switch with 1 PSU installed):
16.7lbs/7.57kg
2-post rack mounting kit -
Environmental:
Power supply efficiency: 87% or better in all operating modes
Max. thermal output (BTU/hr): 6573
Power consumption max (watts): 1683
Operating temperature: 32° to 113°F (0° to 45°C)
Operating relative humidity: 95%
Storage temperature: –40° to 158°F (–40° to 70°C)
Storage relative humidity: 95% -
Performance:
CPU: 4-core
CPU memory: 16GB
SSD: 32GB
Switch fabric capacity (full-duplex): 576Gbps
Forwarding rate: 800Mpps
Line-rate Layer 2 switching: All (non-blocking)
Line-rate Layer 3 routing: All (non-blocking) -
Regulatory Compliance:
TAA-compliant, Trade Agreements Act (19 U.S.C. & 2501-2581)
-
Safety and emissions:
Australia/New Zealand: ACMA RCA Class A Canada: ICES Class A; cUL
China: CCC Class A; NAL Europe: CE Class A Japan: VCCI Class A
USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
Eurasia Customs Union: EAC Germany: GS mark
Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China. For more country-specific regulatory information, and approvals, please see your Dell Technologies representative. -
RoHS:
Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell Technologies representative.
EU WEEE
EU Battery Directive REACH
