Dell PowerEdge C6620 Server Node

  • From: $4,696

xByte Technologies is a Dell Platinum Partner and also sells Dell new (non-recertified) hardware.

  • 100% Dell Original Components
  • 30-Day Money-Back Guarantee
  • Dell Certified Technicians & Engineers
100% Satisfaction Guarantee - The xByte Difference
Dell Platinum Partner Dell Outlet Platinum

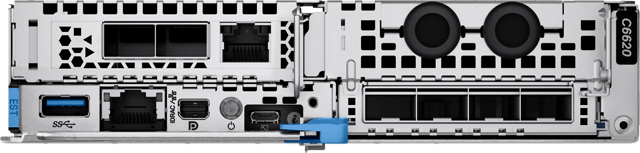

Image of Dell PowerEdge C6620 Server Node
  • Dell Server Generation:16th
  • Server Model:C6620
  • Server Type:Modular
  • CPU:Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores or 4th Generation Intel Xeon Scalable processor with up to
    56 cores per processor
  • Memory:16 DDR5 DIMM slots, supports RDIMM of 4 TB max, speeds up to 5600 MT/s
  • RAID:PERC H965, PERC H755, PERC H355, HBA355i
  • HDD:Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max
    61 TB or up to 8 x E3.s NVMe SSD drives max 288 TB
  • Power Supply:1800W Titanium, 2400W Platinum, 2800W Titanium, 3200W 277 VAC or 336 VDC
  • Rack Units:2U
SKU: >C6620

Videos

Tech Specs

  • Processors:
    Up to two 4th or 5th Generation Intel Xeon Scalable processors with up to 64 cores
  • Memory:
    DIMM Speed: Up to 5600 MT/s
    Memory Type: ECC DDR5 RDIMM
    Slots: 16 DDR5 DIMM slots
    Maximum RAM: 4 TB
  • Storage Controllers:
    Internal: PERC H965, H755, HBA355i
    Boot Optimized Storage Solution (BOSS-N1): HWRAID 2 x M.2 SSDs
    Software RAID: S160
  • Drive Bays:
    16 x 2.5-inch SAS/SATA/NVMe drives (4 per sled)
    8 x E3.s NVMe SSDs (2 per sled)
  • Cooling Options:
    Air cooling
    Liquid cooling
  • Embedded Management:
    iDRAC9
    iDRAC Direct
    RESTful with Redfish
    iDRAC Service Module
  • OpenManage Software:
    OpenManage Enterprise
    Power Manager
    Update Manager
    SupportAssist
  • Networking Options:
    Broadcom BCM5720 Gigabit Ethernet
    OCP 3.0 x16 Mezz card
  • GPU Options:
    Up to two 60 W GPUs
  • Ports:
    Rear ports: Power button
    Mini Display port
    1G RJ45
    1x USB 3.0
    iDRAC Direct

    Internal ports:
    1x SWIFT port
    3x MCIO ports
    1x NPIO port
  • PCIe:
    2x PCIe Gen5 slots
  • Supported Operating Systems:
    ESXi 9.1 - U1
    Red Hat Enterprise Linux 10
    Red Hat Enterprise Linux 9
    Red Hat® Enterprise Linux 8
    SuSE Linux ES 15
    SUSE Linux ES 16 - Update 0 x64
    Ubuntu Server 22.04 LTS
    Ubuntu Server 24.04 - U3
    VMware ESXi 7.0
    VMware ESXi 8.0
    VMware ESXi 9.0
    Windows Server 2019 LTSC
    Windows Server 2022 LTSC
    Windows Server 2025 LTSC
