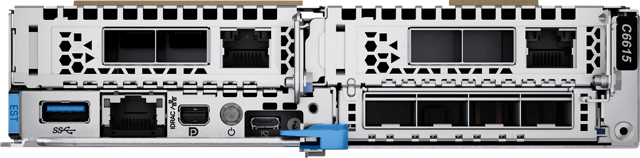

Dell PowerEdge C6615 Server Node

xByte Technologies is a Dell Platinum Partner and also sells Dell new (non-recertified) hardware.

Dell Server Generation:16th
Server Model:C6615
Server Type:Modular
CPU:One 4th Generation AMD EPYC processor, with up to 64 cores
Memory:6 DDR5 DIMM slots, supports RDIMM of 576 GB (6 x 96 GB) max, speeds up to 4800 MT/s

RAID:PERC H755N, PERC H355, HBA355i, S160
HDD:2.5", or E3.S Hot Swap SAS, SATA, and NVMe SSD
Power Supply:3200W VAC, 2800W Titanium, 2400W Titanium, 1800W Titanium hot swap redundant
Riser:Up to 2 x PCIe x16 Gen5 Low-Profile slots, and 1 x OCP 3.0 x16 Gen5
Rack Units:2U

SKU: >C6615

Resources

Processors:
One AMD EPYC 8004 Series processor, with up to 64 cores
Memory:
DIMM Speed: Up to 4800 MT/s
Memory Type: ECC DDR5 RDIMM
Slots: 6 DDR5 DIMM slots
Maximum RAM: 576 TB (6 x 96 GB)
Storage Controllers:
Internal: H755, H355, HBA355i
Boot Optimized Storage Solution (BOSS-N1): HWRAID 2 x M.2 SSDs
Software RAID: S160
Drive Bays:
16 x 2.5-inch SAS/SATA/NVMe drives (4 per sled)
8 x E3.s NVMe SSDs (2 per sled)
Cooling Options:
Air cooling
Embedded Management:
iDRAC9
iDRAC Direct
RESTful with Redfish
iDRAC Service Module
OpenManage Software:
CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Embedded NIC:
1 x 1 GbE
Rear Ports:
1 x USB 3.0
1 x iDRAC ethernet port
1 x iDRAC Direct (Micro-AB USB) port
1 x Mini-DisplayPort
PCIe Slots:
Up to 2 x PCIe x16 Gen5 Low-Profile slots
1 x OCP 3.0 x16 Gen5
Supported Operating Systems:
ESXi 9.1 - U1
Red Hat Enterprise Linux 10
Red Hat Enterprise Linux 9
Red Hat® Enterprise Linux 8
SuSE Linux ES 15
SUSE Linux ES 16 - Update 0 x64
Ubuntu Server 22.04 LTS
Ubuntu Server 24.04 - U3
VMware ESXi 7.0
VMware ESXi 8.0
VMware ESXi 9.0
Windows Server 2019 LTSC
Windows Server 2022 LTSC
Windows Server 2025 LTSC
