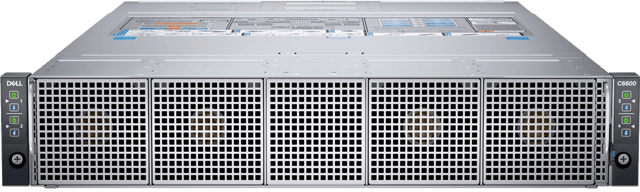

Dell PowerEdge C6600 Chassis

Tech Specs

• Processors:
  Up to two 4th or 5th Generation Intel Xeon Scalable processors with up to 64 cores
• Memory:
  DIMM Speed: Up to 5600 MT/s
  Memory Type: High-Bandwidth Memory
  RDIMMSlots: 16 DDR5 DIMM slots
  Supports registered ECC DDR5 DIMM slots only
  Maximum RAM: 4 TB
• Storage Controllers:
  Internal: PERC H965, H755, HBA355e
  Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs
  Software RAID: S160
• Drive Bays:
  16 x 2.5-inch SAS/SATA/NVMe drives
  8 x E3.s NVMe SSDs
• Power Supplies:
  1800 W Titanium AC/200 - 240 V autoranging
  1800 W DC/240 V
  2400 W Platinum AC/100 - 240 V
  2400 W DC/240 V
  2800 W Titanium AC/200 - 240 V autoranging
  2800 W DC/240 V
  3200 W AC/277 V
  3200 W DC336 V
• Cooling Options:
  Air cooling
  Liquid cooling
• Fans:
  80 mm, 60 mm, 40 mm high-efficiency fans
  Up to four hot swap fans
• Embedded Management:
  iDRAC9
  iDRAC Direct
  RESTful with Redfish
  iDRAC Service Module
• OpenManage Software:
  OpenManage Enterprise
  Power Manager
  Update Manager
  SupportAssist
• Networking Options:
  Broadcom BCM5720 Gigabit Ethernet
  OCP 3.0 x16 Mezz card
• GPU Options:
  Up to two 60 W GPUs
• Ports:
  Rear ports: Power button
  Mini Display port
  1G RJ45
  1x USB 3.0
  iDRAC Direct

  Internal ports:
  1x SWIFT port
  3x MCIO ports
  1x NPIO port
• PCIe:
  2x PCIe Gen5 slots
• Operating Systems:
  Ubuntu Server LTS
  Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXi
