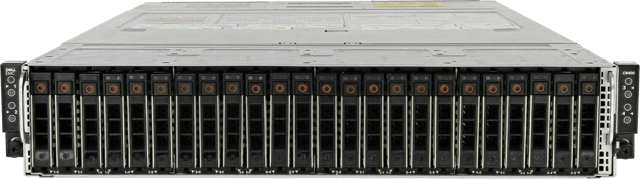

Dell PowerEdge C6420 Server Node

Tech Specs

• Base:
  PowerEdge C6420
• Processor:
  Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 205W and 28 cores per processor
• Memory:
  8 DIMM slots per socket with max of 1024GB with options for 16GB/32GB/64GB RDIMMS @ 2933MT/s, 8GB RDIMMs @2666MT/s, and 128 LRDIMMs @2666MT/s
• Storage:
  One 120/240GB M.2 SATA RI SSD boot drive or Two 120/240GB M.2 SATA RI SSD boot drives in RAID 1,
  One 16/32/64GB MicroSD card
  Controllers: S140 Software RAID with Intel C620 Chipset SATA controller (RAID 0, 1, 5, 10)
  Hardware RAID using PERC H330 Mezzanine (RAID 0, 1, 5, 10, 50), PERC H730p Mezzanine (RAID 0, 1, 5, 6, 10, 50, 60)
  Non RAID: HBA330 Mezzanine, 12Gbps SAS LP PCIe HBA
• Drive Options:
  HDD:
  300/600/900GB 2.5” 15K 12Gb SAS Drives
  300/600GB/1.2TB/1.8TB/2.4TB 2.5” 10K 12Gb SAS Drives
  1TB/2TB 2.5” 7.2K 12Gb SAS Drives
  1/2/4/8/10/12TB 3.5” 7.2K 12Gb SAS/ 6Gbps SATA Drives

  SSD:
  120GB 2.5” 6Gbps SATA Boot SSD
  240/480GB/800GB/960GB/1.6TB/1.92TB/3.84TB 6Gbps SATA Read Intensive
  200/240/400/480/800/960GB/1600/1962GB 6Gbps SATA Mixed Use
  480/960/1920/3840/7680 GB 12Gb SAS Read Intensive
  400/480/960/1600/1920/3840GB 12Gbps SAS Mixed Use
  400/800/1600/3200GB12Gb SAS Write Intensive

  FIPS-140 Self Encrypting Drives:
  900GB/1.2TB/2.4TB 2.5” 10K 12Gb SAS FIPS-140 SED HDD
  2TB 2.5” 7.2K 12Gb SAS FIPS-140 SED HDD
  4TB/8TB 12Gbps SAS FIPS-140 SED HDD 1.92TB Mixed Use
  SATA SED SSD

  2.5” NVMe Drives and Add-in PCIe cards:
  800GB/1TB/1.6TB/2TB/3.2TB/4TB/6.4TB Mixed Use
  1/2/4/TB Read Intensive
• Power & Cooling Options:
  Dual Hot-plug fault-tolerant, fully redundant or non-redundant 1600W AC Power Supply
  Dual Hot-plug fault-tolerant or fully redundant 2000W and 2400W AC Power Supply
  Four dual rotor redundant, non-hot swappable fans
  Air and Direct Contact Liquid Cooling (DCLC) options
• Dimensions & Weight:
  HxWxD: 86.8mm x 448mm x 790mm
  Weight: 3.5” Direct Backplane
  Chassis: 43.62 Kg
  2.5” Direct/Expander/NVMe
  Backplane Chassis: 41.46 Kg
  No Backplane Chassis: 34.56 Kg
  Form factor: Rack (2U)
• Chassis Options:
  24 x 2.5” Direct Backplane w/ up to 6 SAS/SATA drives
  24 x 2.5” Expander Backplane w/ up to 12 SAS/SATA drives per sled & 2 sleds per C6400 chassis
  24 x 2.5” NVMe Backplane w/ up to 2 SAS/SATA/NVMe drives & 4 SAS/SATA drives
  12 x 3.5” Direct Backplane w/ up to 3 SAS/SATA drives
  No Backplane option w/ no external drives
• Embedded / At-Server:
  iDRAC9 with Lifecycle Controller
  iDRAC Direct
  iDRAC REST API with Redfish
• Consoles & Mobile:
  OpenManage Enterprise
  OpenManage Essentials
  Dell EMC Repository Manager
  Dell EMC System Update
  Dell EMC Server Update Utility
  Dell EMC Update Catalogs
• OpenManage Integrations:
  Microsoft® System Center
  VMware® vCenter™
  BMC Software (available from BMC)
• Connections:
  Nagios Core and Nagios XI
  Oracle Enterprise Manager
  HPE Operations Manager i (OMi)
• Tools:
  iDRAC Service Module
  OpenManage Server Administrator
  OpenManage Storage Services
  Dell EMC Repository Manager
  Dell EMC System Update
  Dell EMC Server Update Utility
  Dell EMC Update Catalogs
• Security:
  TPM 1.2/2.0 optional
  Cryptographically signed firmware
  Secure Boot
  Hardware Root of Trust
  System Lockdown
  Secure Erase
• I/O & Ports:
  Rear: 2 x USB 3.0 ports, 1 Micro USB port for iDRAC Direct
  1 x16 PCIe Gen3 riser (low profile, half height & length)
  1 x8 PCIe Gen3 Mezzanine (for storage controller)
  1 x16 PCIe Gen3 OCP Mezzanine (for network controller)
  1 x16 PCIe Gen3 riser (for M.2 Boot Device)
• Supported Operating Systems:
  Canonical® Ubuntu® LTS
  Citrix® XenServer®
  Microsoft Windows Server® with Hyper-V
  Red Hat® Enterprise Linux
  SUSE Linux Enterprise Server
  VMware® ESXi
• Network Cards:
  One 1Gb Ethernet LOM port for systems management or shared with host

  1Gb Ethernet
  Intel i350 1Gb Dual Port Ethernet LP PCIe
  Broadcom 5720 1Gb Dual Port Ethernet LP PCIe

  10Gb Ethernet
  Intel X710 Dual Port 10Gb SFP+ OCP Mezzanine
  Intel X710 Dual Port 10Gb SFP+ LP PCIe
  Intel X520 Dual Port 10Gb SFP+ LP PCIe
  Intel X710 Dual Port 10Gb BASE-T LP PCIe
  Intel X550 Dual Port 10Gb BASE-T LP PCIe
  Intel X710 Quad Port 10Gb BASE-T LP PCIe
  Broadcom 57412 10Gb SFP+ LP PCIer
  Broadcom 57416 10Gb BASE-T LP LP PCIe
  QLogic 41162 Dual Port 10Gb BASE-T LP PCIe
  QLogic 41112 Dual Port 10Gb SFP+ LP PCIe
  SolarFlare 8522 Dual Port 10Gb SFP+ LP PCIe
  Mellanox ConnectX-3 Pro 10Gb Dual Port LP PCIe

  25Gb Ethernet
  Broadcom 57414 Dual Port 25Gbps SFP28 PCIe LP
  QLogic 41262 Dual Port 25Gbps SFP28 LP PCIe
  Intel® 25GBE 2P XXV710
  Mellanox ConnectX-4 Lx Dual Port 25Gbps SFP28 LP PCIe

  40Gb Ethernet
  Mellanox ConnectX-3 Pro Dual Port 40Gbps QSFP+ LP PCIe
  Intel XL710 Dual Port 40Gbps QSFP+ LP PCIe

  100Gb Ethernet / Infiniband
  Mellanox ConnectX-4 Dual Port 100Gb QSFP+ LP PCIe
  Mellanox ConnectX-3 VPI QSFP+ Single Port FDR LP PCIe
  Mellanox ConnectX-4 Single Port VPI QSFP28 EDR LP PCIe
  Mellanox ConnectX-4 Dual Port VPI QSFP28 EDR LP PCIe
  Dual port QSFP carrier card for processors with integrated Intel Omni-Path Fabric
  ConnectX-5 Single Port VPI EDR QSFP28
