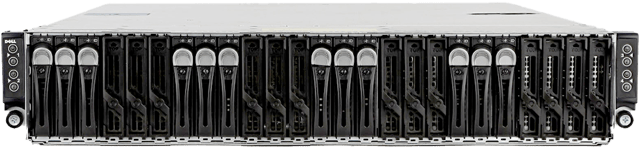

Dell PowerEdge C6320 Server Node

Tech Specs

• Base:
  PowerEdge C6320
• Form Factor:
  2U rack mount
• Dimensions & Weight:
  H: 8.68 cm (3.42 in), W: 44.8 cm (17.6 in)
  D: 79.0 cm (31.1 in)
  Weight (maximum configuration): 41 kg (90.4 lbs)
  Weight (empty): 15.1 kg (33.3 lbs)
• Processor:
  Intel® Xeon® processor E5-2600 v4 product family
  Up to 4 x 2-socket servers: 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 cores per processor
  Intel C612 chipset
• Memory:
  16 DIMM slots for up to 512GB per node: 8GB/16GB/32G DDR4 DIMM (up to 2400MT/s)
• Drive Bays/Hard Drives:
  24 x 2.5" or 12 x 3.5" hard drive options
  24 x 2.5" hard drive option with variable drive allocation
  Supports 7.2K, 10K, 15K RPM 2.5"/3.5" SAS
  Supports 7.2K RPM 2.5"/3.5" SATA

  2.5" SATA (7.2K): 250/500GB, 1TB/2TB
  2.5" SAS (7.2K): 1TB/2TB
  2.5" SAS (10K): 600GB/1.2TB
  2.5" SAS (SAS12): 200/400/800GB
  2.5" SATA SSD: 120/160/200/400/800/960/1200/1600/19
  20/3840GB
  2.5" SAS SSD: 200/400/480/800/960/1600/3840GB
  3.5" SATA (7.2K): 1TB/4TB/6TB
• I/O Slots:
  1 x16 PCIe 3.0 half-height, half-length
  1 x8 PCIe 3.0 mezzanine
• I/O Adapter Options:
  1GbE:
  Intel Powerville I350 dual-port 1GbE
  Intel Powerville I350 dual-port 1GbE PCIe

  10GbE/25GbE/40GbE:
  Intel X540 Dual Port 10GbE 10Base-T
  Mellanox ConnectX®-3 Pro dual-port 10GbE SFP+
  Chelsio Dual Port T520-CR 10Gb SFP+
  Mellanox ConnectX-4 Dual port 25Gb DA
  QLogic FastLinQ QL45212-DE Dual Port 25Gb SFP28
  Broadcom 57404 25Gb SFP28 Dual Port
  Mellanox ConnectX-3 Pro dual port 40Gb
  Mellanox ConnectX-4 Dual Port 100GbE

  InfiniBand:
  Mellanox ConnectX-3 VPI single and dual port
  FDR/40GbE QSFP+
  Mellanox ConnectX-3 dual port, VPI FDR
  Mellanox ConnectX-4 single and dual port EDR

  Omni-Path:
  Intel Omni-path HBA 100 Series Single Port
• Drive & RAID Controller:
  Intel C612 chipset SATA: AHCI SATA drives RAID: 0, 1, 5, 10
  PERC H330: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1, 5, 10, 50
  PERC H730: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1, 5, 10, 50, 60
  LSI® SAS 2008 Controller 6Gbs: mezzanine
  RAID: 0, 1, 10, JBOD
  SATA DOM boot device (64GB)
  SAS SSD boot device (120GB)
• Primary Storage:
  Maximum internal storage: 72TB SATA or NL 48TB SAS
• Power Supplies:
  Dual hot-plug redundant high-efficiency 1400W or 1600W power supplies (200–220 VAC, 240VDC)
• Fans:
  Shared cooling with quick-disconnect 4x60mm speed fans
• Embedded Network Connectivity:
  Intel 82599ES 10GbE dual-port SFP+
• USB Ports:
  2 external USB 2.0 ports
• Operating Systems:
  Microsoft® Windows Server® 2012 Microsoft Windows
  Server 2012 R2
  Novell® SUSE® Linux Enterprise Server Red Hat®
  Enterprise Linux®
• Hypervisors:
  Microsoft Windows Server 2012 (with Hyper-V® enabled) VMware® vSphere® ESXi®
• Systems Management:
  Remote management:
  iDRAC8 with Lifecycle
  Controller iDRAC8 Express (default)
  iDRAC8 Enterprise (upgrade option)
  Systems management:
  IPMI 2.0 compliant
  Dell OpenManage Essentials
  Dell OpenManage
