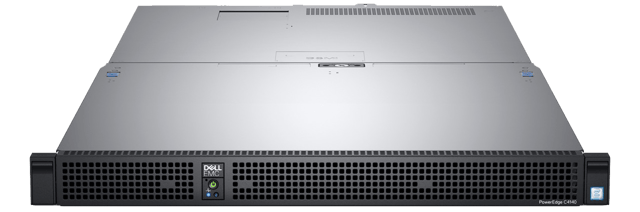

Dell PowerEdge C4140 Server Node

Tech Specs

• Base:
  PowerEdge C4140
• Processor:
  Two 2nd generation Intel® Xeon® Scalable processors, up to 26 cores per processor
• Dimensions & Weight:
  H: 4.28 cm (1.69 in)
  W: 43.4 cm (17.09 in)
  D: 92.62 cm (36.46 in)
  Max weight: 24 kg (52.91 lb)
• Memory:
  Up to 24 DDR4 DIMMs in total; Supports RDIMM /LRDIMM speeds up to 2933 MT/s, 1.5 TB Max ECC Registered DDR4
• Storage Controllers:
  IDSDM or Internal M.2 Boot Module (2 x M.2) -120G, 240G, 480G
• Power Supplies:
  2000W, 2400W hot-plug, in either a redundant power supply unit (PSU) or single PSU option (available in certain Configurations only)
• Accelerators:
  Up to four 300W GPUs NVIDIA Tesla V100, V100S up to 300W each
• Embedded / At-Server:
  iDRAC9
• Network Daughter Cards & Optional Adapters:
  Support for the following Network Daughter Cards:
  Intel® X550 Quad Port 10GBASE-T (2+2)
  Intel® X550 Quad Port 10GBASE-T
  Intel® X710 Quad Port 10Gb SFP+ (2+2)

  Support for the following PCIE N/W adapters:
  Intel® I350 Quad Port 1GbE PCIe LP
  Intel® X550 Dual Port 10GBASE-T PCIe LP
  Intel® X710 Dual Port 25GbE SFP28 PCIe LP
  Intel® X710 Dual Port 10GSFP+ PCIe LP
  Intel® X710 Dual Port 10GBASE-T PCIe LP
  Mellanox ConnectX-6 HDR 200Gb InfiniBand
  Single-Port is available as a dual-card solution
  HDR100 is also available as well
  Mellanox ConnectX-3 Pro Dual Port 10GbE SFP+
  PCIe LP Mellanox ConnectX-3 Pro Dual Port 40GbE
  QSFP+ PCIe LP Mellanox ConnectX-4 LX Dual Port
  10/25GbE SFP28 PCIe LP Mellanox ConnectX-4
  Dual Port 100GbE QSFP28 PCIe LP Mellanox
  ConnectX-5 Dual Port 100GbE QSFP28 PCIe LP
  Intel® Omni-Path 1 x OPA 100Gb
  Mellanox ConnectX-3 Single Port FDR VPI PCIe LP
  Mellanox ConnectX-5 1Port Infiniband EDR VPI PCIe

  Optional adapters:
  Support for 2x NVMe/PCIE SSD AIC in rear slots
• Consoles:
  OpenManage Enterprise
  OpenManage Server Administrator
  OpenManage Power Center
• Security:
  TPM 1.2/2.0 optional
  Cryptographically signed firmware
  Silicon Root of Trust
  Secure Boot
  System Lockdown (requires iDRAC Enterprise or Datacenter)
  System Erase
• I/O & Ports:
  Four (4) Double Wide accelerator Gen3 x16 PCIe slots
  Two (2) low profile Gen3 x16 PCIe slots
  Front ports: Power button, System ID/Status LED, Health Status LED
  Rear ports: 2 USB 3.0 Port and iDRAC ethernet port
• Supported Operating systems:
  Canonical® Ubuntu® Server LTS 16.04.3
  Red Hat® Enterprise Linux 7.4 and 7.5
  SUSE® Linux Enterprise Server 12 SP3®
  Windows Server 2016
  VMware® ESXi 6.5 U2 and 6.7
