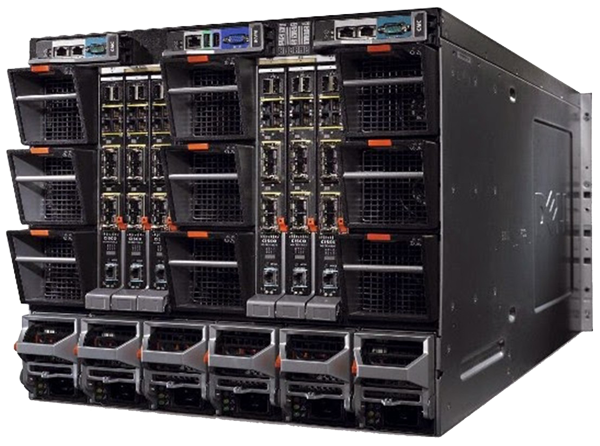

Dell PowerEdge M1000e

The Dell PowerEdge M1000e Modular Blade Enclosure is the rock-solid foundation for Dell’s blade server architecture, providing an extremely reliable, flexible and efficient platform for building any IT infrastructure.The Dell PowerEdge M1000e Modular Blade Enclosure is built from the ground up to combat data center sprawl and IT complexity, delivering one of the most energy efficient, flexible, and manageable blade server implementations on the market.

Blade Qty: 16 half height or 8 full height
Fans: 9
Connectivity: Ethernet, Infiniband and Fibre Channel
Remote: iKVM, CMC
Power: 2700W

Effortless Scalability

Only Dell provides complete, scale-on-demand switch designs. With additional I/O slots and switch options, you have the flexibility you need to meet ever-increasing demands for I/O consumption. Plus, Dell’s FlexIO modular switch technology lets you easily scale to provide additional uplink and stacking functionality — no need to waste your current investment with a “rip and replace” upgrade.

Easy-to-Use + Powerful Management

The M1000e helps reduce the cost and complexity of managing computing resources so you can focus on growing your business or managing your organization with features including:

Centralized Chassis

Management Controller (CMC)

Modules for redundant, secure access

paths for IT administrators to manage multiple

enclosures and blades from a single interface.

Dynamic and Granular

Power Management

Allows you the capability to set power

thresholds to help ensure your blades operate

within your specific power envelope.

Real-Time Power

Consumption Reporting

Available for both the enclosure and blades, as well

as the ability to prioritize blade slots for power, providing you with optimal control over power resources.


Reliable, Flexible and Efficient

Choose the M1000e Blade Server that works best for your solutions:

Dell PowerEdge M1000e Blade Chassis

Blade Qty: 16 half height or 8 full height
Fans: 9
Connectivity: Ethernet, Infiniband and Fibre Channel
Remote: iKVM, CMC
Power: 2700W


Dell PowerEdge M630

CPU(s): 2 x Intel E5-26xx Multi-Core
Memory: 24 DIMM Slots (Max 768GB)
RAID: PERC H330, PERC H730 1GB NV, PERC H730P 2GB NV
HDD: 2.5" Hot Swap SAS, SATA & NL SAS, 1.8" SSD/uSATA

Power: Supplied by M1000e Blade Chassis

Dell PowerEdge M820

CPU(s): Intel® Xeon® processor E5-4600 product family
Memory: Up to 1.5TB (48 DIMM slots)
RAID: PERC H310, PERC H710, PERC H710P
HDD: Up to 4 2.5” SAS, SSD, or up to 2 PCIe Exp Flash SSD
Power: Supplied by M1000e Blade Chassis


Dell PowerEdge M620

CPU(s): Intel® Xeon® processor E5-2600 product family
Memory: Up to 768GB (24 DIMM Slots)
RAID: PERC S110, PERC H310, PERC H710, PERC H710P
HDD: Up to 2 2.5” PCIe SSD, SATA or SAS HDD/SSD
Power: Supplied by M1000e Blade Chassis

Dell PowerEdge M640

CPU(s): Up to 2 x Intel Xeon SP Multi Core
Memory: 16 DIMM Slots (Max 2TB)
RAID: PERC H330, PERC H730P 2GB NV
HDD: 3.5" & 2.5" Hot Swap SAS, SATA & NL SAS, NVMe SSD

Power: Supplied by M1000e Blade Chassis


Dell PowerEdge M520

CPU(s): 2 x Intel E5-24XX Multi Core
Memory: 12 DIMM Slots (Max 384GB)
RAID: PERC H310, H710 512MB NV, H710p 1GB NV
HDD: 2.5" Hot Swap SAS, SATA and Near Line SAS

Power: Supplied by M1000e Blade Chassis
