Home  >  Dell PowerEdge Servers > Dell PowerEdge R710 Servers


Dell PowerEdge R710 Servers

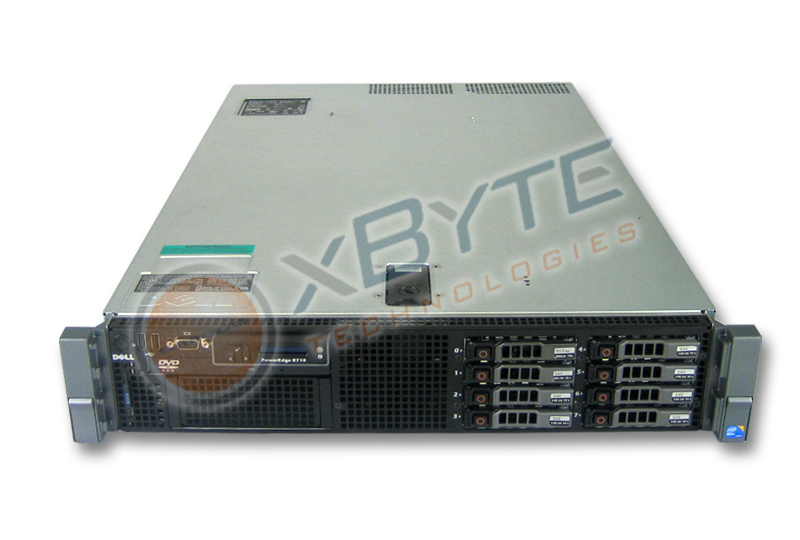

Dell PowerEdge R710
The xByte Difference
The PowerEdge R710 is a mainstream Intel processor-based 2-socket, 2U rack server great for server rooms or corporate data centers and remote sites that require exceptional virtualization, systems management and energy efficiency.

CPU(s): 2 x Intel 5500/5600 Multi Core
Memory: 18 DIMM Slots (Max 288GB)
RAID: SAS6ir, H200, Perc6i or H700
HDD: 2.5" or 3.5" Hot Swap SAS, SATA and Near Line SAS
RISER: 4xPCI-E
Power: 570W or 870W Hot Swap Redundant
Form Factor 2U rack
Processors Quad-core or six-core Intel® Xeon® processor 5500 and 5600 series
Processor Sockets 2
Front Side Bus or HyperTransport Intel® QuickPath Interconnect (QPI)
Cache Up to 12MB
Chipset Intel® 5520
Memory Up to 288GB (18 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 up to 1333MH
I/O Slots 4 PCIe G2 slots + 1 storage slot: Two x8 slots; Two x4 slots; One x4 storage slot
RAID Controller Internal: PERC H200 (6Gb/s); PERC H700 (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache; SAS 6/iR; PERC 6/i with 256MB battery-backed cache External: PERC H800 (6Gb/s) with 512MB of battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache; PERC 6/E with 256MB or 512MB of battery-backed cache External HBAs (non-RAID): 6Gbps SAS HBA; SAS 5/E HBA; LSI2032 PCIe SCSI HBA
Drive Bays 8 x 2.5” Hard Drive Option or 6 x 3.5” Hard Drive Option; Optional flex bay expansion to support half-height TBU Up to four 3.5” drives with optional flex bay, up to six 3.5” drives without optional flex bay, or up to eight 2.5” SAS or SATA drives with optional flex bay Peripheral bay options: Slim optical drive bay with choice of DVD-ROM, Combo CD-RW/DVD-ROM, or DVD + RW
Maximum Internal Storage Up to 12TB
Hard Drives Hot-plug Hard Drive Options: 2.5” SAS SSD, SATA SSD, SAS (10K, 15K), nearline SAS (7.2K), SATA (7.2K); 3.5” SAS (10K, 15K), nearline SAS (7.2K), SATA (5.4K, 7.2K) Solid State Storage Cards: Fusion-io® 160IDSS—160GB ioDrive PCIe solid state storage card ; Fusion-io® 640IDSS—640GB ioDrive Duo PCIe solid state storage card
Communications Four embedded Broadcom® NetXtreme® II 5709c Gigabit Ethernet NIC with failover; and load balancing; TOE (TCPIP Offload Engine) supported on Microsoft® Windows; Server® 2003 SP1 or higher with Scalable Networking Pack; Optional 1GBe and 10GBe add-in NICs; Broadcom® NetXtreme® II 57711 Dual Port Direct Attach; 10Gb Ethernet PCI-Express Network Interface Card with TOE and iSCSI Offload; Intel® Gigabit ET Dual Port Server Adapter and Intel® Gigabit ET Quad Port Server Adapter; Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FcoE Ready for Future Enablement); Optional add-in NICs: Brocade® CNA (1020) Dual Port Server Adapter Optional add in HBAs: Brocade® 8 GB HBAs; Emulex® OCE10102-IX-DCNA iSCSI HBA stand-up adapter
Power Supply Energy Smart – Two hot-plug high-efficient 570W PSU OR High Output Two hot-plug 870W PSUs Uninterruptible Power Supplies: 1000W–5600W; 2700W–5600W High-Efficiency Online; Extended Battery Module (EBM); Network Management Card
Availability DDR3; hot-plug hard drives; optional hot-plug redundant power supplies; dual embedded NICs with failover and load balancing support; PERC 6/i; hot-plug redundant cooling; toolless chassis; fibre and SAS cluster support; validated for Dell/EMC SAN
Video Matrox® G200 with 8MB of cach
Remote Management iDRAC6 Enterprise (optional)
Systems Management Dell™ OpenManage™; Microsoft® System Center Essential (SCE) 2010 v2
Embedded Hypervisor Optional Embedded SD Media
Rack Support ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks); ReadyRails™ static rails for 2-post and 4-post racks
Operating Systems Microsoft® Windows® Small Business Server 2011; Microsoft® Windows® Small Business Server 2008; Microsoft® Windows Server® 2008 SP2, x86/x64 (x64 includes Hyper-V™); Microsoft® Windows Server® 2008 R2, x64 (includes Hyper-V™ v2); Windows® HPC Server 2008 R2; Novell® SUSE® Linux® Enterprise Server; Red Hat® Enterprise Linux® Oracle® Solaris™ Virtualization Options: Citrix® XenServer™; VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1);


Dell PowerEdge R710 Server with 1 Year xByte Warranty

Dell PowerEdge R710 Server with 1 Year xByte Warranty

  • CPU(s):  2 x Intel 5500/5600 Multi Core
  • Memory: 18 DIMM Slots (Max 288GB)
  • RAID: SAS6ir, H200, Perc6i or H700
  • HDD:  2.5" or 3.5" Hot Swap SAS, SATA and Near Line SAS
  • RISER: 4xPCI-E
  • Power: 570W or 870W Hot Swap Redundant
  • Condition:  xByte Recertified
  • Warranty:  1 Year xByte Warranty
  •
  • Starting at $1,199.00
  • was $1,999.00
  • save $800.00
  • Custom Configuration
Dell PowerEdge R710 Server with 3 Year Dell/xByte Warranty

Dell PowerEdge R710 Server with 3 Year Dell/xByte Warranty

  • CPU(s):  2 x Intel 5500/5600 Multi Core
  • Memory: 18 DIMM Slots (Max 288GB)
  • RAID: SAS6ir, H200, Perc6i or H700
  • HDD:  2.5" or 3.5" Hot Swap SAS, SATA and Near Line SAS
  • RISER: 4xPCI-E
  • Power: 570W or 870W Hot Swap Redundant
  • Condition:  Refurbished
  • Warranty:  3 Year Dell/xByte Warranty
  •
  • Starting at $1,399.00
  • was $2,399.00
  • save $1,000.00
  • Custom Configuration

Pre-Configured Server Deals
Description Condition Price More Info
2x2.4/8M E5530 Quad Core
32GB DDR3 ECC REG (8 x 4GB)
2x146GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $1,399
was $2000
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/8M E5530 Quad Core
32GB DDR3 ECC REG (8 x 4GB)
6x146GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $2,199
was $3100
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/8M E5530 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x600GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $3,799
was $5400
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/8M E5530 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x1TB 3.5" NL-SAS
 xByte Recertified
1 Year xByte Recertified		 $3,199
was $4600
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/8M E5530 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x2TB 3.5" SATA
 xByte Recertified
1 Year xByte Recertified		 $3,599
was $5100
save 30%
 [Click Here]
Description Condition Price More Info
2x2.8/8M E5560 Quad Core
32GB DDR3 ECC REG (8 x 4GB)
2x146GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $1,599
was $2300
save 30%
 [Click Here]
Description Condition Price More Info
2x2.8/8M E5560 Quad Core
32GB DDR3 ECC REG (8 x 4GB)
6x146GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $2,399
was $3400
save 30%
 [Click Here]
Description Condition Price More Info
2x2.8/8M E5560 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x600GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $3,999
was $5700
save 30%
 [Click Here]
Description Condition Price More Info
2x2.8/8M E5560 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x1TB 3.5" NL-SAS
 xByte Recertified
1 Year xByte Recertified		 $3,399
was $4800
save 30%
 [Click Here]
Description Condition Price More Info
2x2.8/8M E5560 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x2TB 3.5" SATA
 xByte Recertified
1 Year xByte Recertified		 $3,799
was $5400
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/12M E5620 Quad Core
32GB DDR3 ECC REG (8 x 4GB)
2x146GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $1,999
was $2800
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/12M E5620 Quad Core
32GB DDR3 ECC REG (8 x 4GB)
6x146GB 15K 3.5" SAS
 xByte Recertified
1 Year xByte Recertified		 $2,799
was $4000
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/12M E5620 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x600GB 15K 3.5" SAS
 Refurbished
3 Year Dell/xByte Warranty		 $4,399
was $6300
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/12M E5620 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x1TB 3.5" NL-SAS
 Refurbished
3 Year Dell/xByte Warranty		 $3,799
was $5400
save 30%
 [Click Here]
Description Condition Price More Info
2x2.4/12M E5620 Quad Core
48GB DDR3 ECC REG (12 x 4GB)
6x2TB 3.5" SATA
 Refurbished
3 Year Dell/xByte Warranty		 $4,199
was $6000
save 30%
 [Click Here]
