Home > Dell PowerEdge Servers > Dell PowerEdge R515

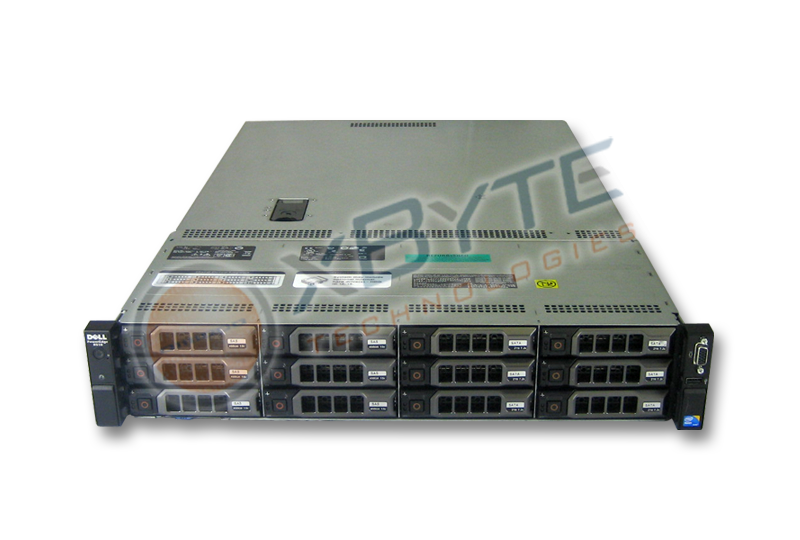

Dell PowerEdge R515 ( 12 x 3.5" Drives )

Item Code: >R515-12
Category: Dell PowerEdge R515

CPU(s): 2 x AMD 4100 Multi Core
Memory: 8 DIMM Slots (Max 128GB)
RAID: H200 or H700
HDD: 12 x 3.5" Hot Swap SAS, SATA and Near Line SAS
RISER: 3xPCI-E
Power: 750W Hot Swap
Optical: None
Condition: Refurbished

$1,699.00

Product Detail Spec Sheet

Dell PowerEdge R515 Server Base

R515 chassis with up to twelve 3.5 inch hard drives (May delay order 1-4 days)

Label

AMD CPUs

2 X AMD Opteron 2.8GHz 6x512 4184 Hex Core (May delay order 1-4 days)

Label

Hide

2 X Heat Sink for PE R515

Label

Memory

Each server has 4 nodes, so the GB after 4x gives you the memory per node

16GB (8x2G) DDR3 ECC RDIMM - Optimized

16GB (8x2G) DDR3 ECC RDIMM - Optimized
16GB (4x4G) DDR3 ECC RDIMM - Advanced ECC [Subtract $12.00]
32GB (8x4G) DDR3 ECC RDIMM - Optimized [Add $128.00]
64GB (8x8G) DDR3 ECC RDIMM - Optimized [Add $560.00]
64GB (4x16G) DDR3 ECC RDIMM - Optimized [Add $524.00]
128GB (8x16G) DDR3 ECC RDIMM - Optimized [Add $1,200.00]

Label

Primary Controller (RAID)

With the complexity and risk of upgrading a RAID controller, it is important to start with a quality controller so you can achieve maximum IOPS and strong data reliability. (Learn More)

H200 is a hardware RAID card with 6Gbps throughput. It supports up to 16 hard drives in arrays of 0, 1, and 10.

H700 w/512MB Cache has 6Gbps throughput and a battery backed cache size of 512MB to improve performance through use of a Write-Back cache policy. This allows the RAID controller to send the data transfer completion signal to the host when the controller cache has received all the data in a transaction. Versus sending the data transfer completion signal once the data is written to the much slower storage device. The controller then writes the cached data to the storage device in the background freeing up resources and improving performance. Array options are 0, 1, 5, 10, 50, 60 and 0+1.

H700 w/512MB Non-Volatile Cache has 6Gbps throughput but uses 512MB of battery backed cache with Non-Volatile memory. In the event of a power cycle, the controller will write the data in cache to flash memory where the data can be retained for up to ten years. Array options are 0, 1, 5, 10, 50, 60 and 0+1.

H700 w/1GB Non-Volatile Cache has 6Gbps throughput but ups the cache to 1GB of battery backed Non-Volatile cache maxing your IO performance and reliability. Array options are 0, 1, 5, 10, 50, 60 and 0+1.

PERC H200 (RAID 0/1/10)

PERC H200 (RAID 0/1/10)
PERC H700 Integrated with 512MB Cache (RAID 0/1/5/6/10/50/60/0+1) [Add $299.00] - Recommended option
PERC H700 Integrated with 512MB NV Cache (RAID 0/1/5/6/10/50/60/0+1) [Add $399.00]
PERC H700 Integrated with 1GB NV Cache (RAID 0/1/5/6/10/50/60/0+1) [Add $499.00]

Label

RAID Configuration

No RAID Configured

No RAID Configured
RAID 0+1
RAID 0
RAID 1
RAID 10
RAID 5
RAID 50
RAID 6
RAID 60
Custom RAID Configuration (specify in notes when placing order)

Label

Hard Drive [1]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

Minimum 2 drives per server

No Hard Drive

No Hard Drive
-- SAS Hard Drives --
Dell 73GB 10K 3.5" SAS Hard Drive [Add $69.00]
Dell 73GB 15K 3.5" SAS Hard Drive [Add $79.00]
Dell 146GB 10K 3.5" SAS Hard Drive (May delay order 1-4 days) [Add $95.00]
Dell 146GB 15K 3.5" SAS Hard Drive [Add $89.00]
Dell 300GB 10K 3.5" SAS Hard Drive [Add $179.00]
Dell 300GB 15K 3.5" SAS Hard Drive [Add $199.00]
Dell 450GB 15K 3.5" SAS Hard Drive [Add $269.00]
Dell 600GB 10K 3.5" SAS Hard Drive [Add $319.00]
Dell 600GB 15K 3.5" SAS Hard Drive [Add $319.00]   - Recommended option
-- Near Line SAS Hard Drives --
Dell 500GB 7.2K 3.5" NL SAS Hard Drive [Add $179.00]
Dell 750GB 7.2K 3.5" NL SAS Hard Drive (May delay order 1-4 days) [Add $239.00]
Dell 1TB 7.2K 3.5" NL SAS Hard Drive [Add $239.00]
Dell 2TB 7.2K 3.5" NL SAS Hard Drive [Add $349.00]
-- SATA Hard Drives --
Dell 160GB 7.2K 3.5" SATA Hard Drive (May delay order 1-4 days) [Add $119.00]
Dell 250GB 7.2K 3.5" SATA Hard Drive [Add $139.00]
Dell 500GB 7.2K 3.5" SATA Hard Drive [Add $139.00]
Dell 750GB 7.2K 3.5" SATA Hard Drive (May delay order 1-4 days) [Add $167.00]
Dell 1TB 7.2K 3.5" SATA Hard Drive [Add $179.00]
Dell 2TB 5.4K 3.5" SATA Hard Drive [Add $299.00]
Dell 2TB 7.2K 3.5" SATA Hard Drive [Add $299.00]

Label

Hard Drive [2]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

Minimum 2 drives per server

No Hard Drive

Label

Hard Drive [3]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [4]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [5]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [6]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [7]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [8]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [9]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [10]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [11]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Hard Drive [12]

Click here for a comparison of SAS, SATA, Near Line SAS, and Solid State drives

No Hard Drive

Label

Dell Power Supply

Dell 750W Power Supply

Label

Redundant Power Supply

Availability versus efficiency. Which is more important to your requirements? (Learn More)

Redundant PSUs provide high availibility power to machines. If one PSU fails or looses it's AC power (if PSUs are on separate AC grids) the second power supply can carry the load.

This availability does come with a price in the form of an energy usage penalty.

PSUs opperate less eficiently at lower usages. Since power load will be spread accross active PSUs, those PSU's efficiencies will drop.

No Redundant Power Supply

No Redundant Power Supply
Redundant 750W Power Supply [Add $139.00] - Recommended option

Label

Remote Access Controller

Baseboard Management Controller

Baseboard Management Controller
Dell iDRAC6 Express Card [Add $99.00]
Dell iDRAC6 Enterprise Card [Add $139.00] - Recommended option
Dell iDRAC6 Enterprise with Vflash (May delay order 1-4 days) [Add $215.00]

Label

Dell Rail Kit

Please note: Dell servers do not all share the same rails. You will need rails specific to your server.

No Rails

No Rails
Dell Ready Rails [Add $199.00] - Recommended option

Label

Onboard Networking

Dual Broadcom NetXtreme II 5716 Dual Port Gigabit Ethernet

Label

PCI-E Riser Slot 1

No PCIe Option in Riser Slot 1

No PCIe Option in Riser Slot 1
Brocade 815 Single-Port 8 Gbps FC Host Bus adapter [Add $399.00]
Broadcom® NetXteme II 57711 10GbE SR NIC w/TOE & iSOE, Dual Port, SFP+, PCIe-8 [Add $395.00]
Dell 6Gbs SAS External Controller Dual Port PCIe HBA [Add $249.00]
Emulex LPE 12000 Single Channel 8Gb, Optional, Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $959.00]
Emulex LPE12002-E 8GB PCI-E Fiber (May delay order 1-4 days) [Add $1,079.00]
Intel AF DA 10G Fiber Dual Port PCI-E NIC (May delay order 1-4 days) [Add $582.00]
Intel Gigabit ET Dual Port NIC, PCIe-4 [Add $395.00]
Intel Gigabit ET Quad Port NIC, PCIe-4 (May delay order 1-4 days) [Add $299.00]
Intel Gigabit XF SR Fiber Single Port NIC (May delay order 1-4 days) [Add $1,199.00]
Intel 82598EB 10Gb Base-T Single Port PCI-E Network Card (May delay order 1-4 days) [Add $419.00]
Intel X520 SFP+ Direct Attach Dual Port 10GB PCIe HBA [Add $449.00]
Mellanox ConnectX Dual Port IB HBA [Add $249.00]
Qlogic 2460 4Gb Optical Fiber Channel Host Bus Adapter, PCIe [Add $129.00]
Qlogic PCI-e QLE2462 4GB Dual PT HBA [Add $169.00]
Qlogic 2560 Single Channel 8Gb Optical Fiber Channel Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $810.00]
Qlogic 2562 Dual Channel 8Gb Optical Fiber Channel Host Bus Adapter, PCIe [Add $899.00]
Qlogic 2564 Quad Port 8Gb Optical Fiber Channel Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $3,834.00]

Label

PCI-E Riser Slot 2

No PCIe Option in Riser Slot 2

No PCIe Option in Riser Slot 2
Brocade 815 Single-Port 8 Gbps FC Host Bus adapter [Add $399.00]
Broadcom® NetXteme II 57711 10GbE SR NIC w/TOE & iSOE, Dual Port, SFP+, PCIe-8 [Add $395.00]
Dell 6Gbs SAS External Controller Dual Port PCIe HBA [Add $249.00]
Emulex LPE 12000 Single Channel 8Gb, Optional, Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $959.00]
Emulex LPE12002-E 8GB PCI-E Fiber (May delay order 1-4 days) [Add $1,079.00]
Intel AF DA 10G Fiber Dual Port PCI-E NIC (May delay order 1-4 days) [Add $582.00]
Intel Gigabit ET Dual Port NIC, PCIe-4 [Add $395.00]
Intel Gigabit ET Quad Port NIC, PCIe-4 (May delay order 1-4 days) [Add $299.00]
Intel Gigabit XF SR Fiber Single Port NIC (May delay order 1-4 days) [Add $1,199.00]
Intel 82598EB 10Gb Base-T Single Port PCI-E Network Card (May delay order 1-4 days) [Add $419.00]
Intel X520 SFP+ Direct Attach Dual Port 10GB PCIe HBA [Add $449.00]
Mellanox ConnectX Dual Port IB HBA [Add $249.00]
Qlogic 2460 4Gb Optical Fiber Channel Host Bus Adapter, PCIe [Add $129.00]
Qlogic PCI-e QLE2462 4GB Dual PT HBA [Add $169.00]
Qlogic 2560 Single Channel 8Gb Optical Fiber Channel Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $810.00]
Qlogic 2562 Dual Channel 8Gb Optical Fiber Channel Host Bus Adapter, PCIe [Add $899.00]
Qlogic 2564 Quad Port 8Gb Optical Fiber Channel Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $3,834.00]

Label

PCI-E Riser Slot 3

No PCIe Option in Riser Slot 3

No PCIe Option in Riser Slot 3
Brocade 815 Single-Port 8 Gbps FC Host Bus adapter [Add $399.00]
Broadcom® NetXteme II 57711 10GbE SR NIC w/TOE & iSOE, Dual Port, SFP+, PCIe-8 [Add $395.00]
Dell 6Gbs SAS External Controller Dual Port PCIe HBA [Add $249.00]
Emulex LPE 12000 Single Channel 8Gb, Optional, Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $959.00]
Emulex LPE12002-E 8GB PCI-E Fiber (May delay order 1-4 days) [Add $1,079.00]
Intel AF DA 10G Fiber Dual Port PCI-E NIC (May delay order 1-4 days) [Add $582.00]
Intel Gigabit ET Dual Port NIC, PCIe-4 [Add $395.00]
Intel Gigabit ET Quad Port NIC, PCIe-4 (May delay order 1-4 days) [Add $299.00]
Intel Gigabit XF SR Fiber Single Port NIC (May delay order 1-4 days) [Add $1,199.00]
Intel 82598EB 10Gb Base-T Single Port PCI-E Network Card (May delay order 1-4 days) [Add $419.00]
Intel X520 SFP+ Direct Attach Dual Port 10GB PCIe HBA [Add $449.00]
Mellanox ConnectX Dual Port IB HBA [Add $249.00]
Qlogic 2460 4Gb Optical Fiber Channel Host Bus Adapter, PCIe [Add $129.00]
Qlogic PCI-e QLE2462 4GB Dual PT HBA [Add $169.00]
Qlogic 2560 Single Channel 8Gb Optical Fiber Channel Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $810.00]
Qlogic 2562 Dual Channel 8Gb Optical Fiber Channel Host Bus Adapter, PCIe [Add $899.00]
Qlogic 2564 Quad Port 8Gb Optical Fiber Channel Host Bus Adapter, PCIe (May delay order 1-4 days) [Add $3,834.00]

Label

Power Cord(s)

No Power Cord

No Power Cord
Standard Power Cord(s)
PDU Power Cord(s)

Label

Front Bezel

The bezel serves two purposes: security and aesthetics. (Learn More)

Security
Protects the hard drives and the power button from removal or accidental usage. The bezel can be locked with the key included.

Aesthetics
Attached to the front side of the server to give a more "finished" look.

No PE R510 Front Bezel

No PE R510 Front Bezel
Dell PE R510 Front Bezel [Add $29.00]

Label

Windows Operating System

Software will be included with server, but not installed

No Windows Operating System

No Windows Operating System
Windows Server 2008 R2 Standard x64 - Server License with 5 CALS [Add $799.00]
Windows Server 2008 R2 Standard x64 - Server License with 10 CALS [Add $1,075.00]
Windows Server 2008 R2 Enterprise x64 - Server License with 25 CALS [Add $3,000.00]
Small Business Server 2011 Standard x64 with 5 CALs OEM [Add $795.00]

Label

Windows OS Installation (OS Selection Required Above)

No OS Installation

No OS Installation
Windows OS Installation [Add $150.00]

Label

BIOS/Firmware Updates & Testing

Custom Configuration and Full Testing, Full BIOS/Firmware Updates (May delay order 1 day)

Custom Configuration and Full Testing, Full BIOS/Firmware Updates (May delay order 1 day)
Custom Configuration and Full Testing, No BIOS Updates

Label

Dell Next Business Day Warranty

Server was purchased directly from Dell with a fully transferrable warranty (Learn More)

Servers with a remainder of Dell 3 year Next Business Day warranty were purchased directly from Dell by xByte with a fully transferable warranty. The Dell warranty starts when the system ships from Dell, so remaining warranty duration can range from 2-3 years. Please contact xByte if you need the exact warranty periods available.

The original Dell warranty applies to the base system and any components that are original to that particular Tag Number based on how Dell shipped the unit. All parts are also covered by xByte's Next Business Day warranty for 3 years from the date YOU purchase the servers from xByte. Our warranty terms are very straightforward - contact us with the problem, we will help diagnose the component failure with you, and will overnight you replacement part(s) at our cost and send a return shipping label to send back the defective parts.

xByte Technologies is a Dell Warranty Parts Direct Provider and all our technicians are Dell Certified for all the PowerEdge models we sell.

3 Year Dell/xByte Hybrid Warranty

Label

Dell PowerEdge R515 ( 12 x 3.5" Drives )

Total $1,699.00
As low as $44.51/mo.*.02620 xByte Lease Specials

Call 888-929-8348 for more details

• No hefty credit card interest charges
• Preserve working capital and lines of credit
• Can purchase based on need not budget
• Simple one page application
• Shipping and software can all be included
• Many lease payments are tax deductible (contact your tax advisor)
• Protect against obsoloescense - option to return equipment when lease ends

***Please Note***
The payments shown are only estimates. Your actual payments may be lower or higher than depending upon the details of your application. Rates are subject to change without notice.
Estimated Ship Date: 5/27/20135/27/2013

Click to verify BBB accreditation and to see a BBB report.

Company Info

About Us

Testimonials

Careers
Contact Us

Customer Support

xByte Warranty

RMA Request

Support FAQ

Manufacturer Part Numbers

Services

xByte xPress

xByte xChange

Referral Program

Submit a Referral

Media Relations

xByte in the News

Follow us on Twitter

Read our Blog

xByte Technologies • 911 Commerce Blvd North • Sarasota, FL 34243

Copyright © 2013 xByte Technologies

Use of manufacturer names, logos and trademarks is intended as fair use only for the independent resale of their
products, and, unless stated explicitly, does not imply any affiliation with or sponsorship by the manufacturers.
Dell systems may be Refurbished, Off-Lease or Pre-Owned - please see description for more details.
